Jenkins Multibranch Pipelines

Multibranch Pipeline projects work with the Webhook Relay Jenkins plugin just like regular jobs — pushes and pull requests on GitHub trigger builds on a Jenkins that has no public IP. But they are configured differently from regular jobs, and that trips people up:

A Multibranch Pipeline has no Build Triggers section. Don't look for one — nothing is missing from your Jenkins. Branch and pull request jobs are created and triggered by the branch source reacting to the webhook events the plugin delivers, with no per-job trigger configuration at all.

This page shows the full setup for GitHub. When it's done, every push and pull request travels GitHub → your Webhook Relay bucket → the plugin → /github-webhook/, and:

• Push to a branch — the matching branch job builds.
• Push a new branch — a job for it is created and built automatically.
• Open a pull request — a PR-<number> job is created and built.

Requirements

• The Webhook Relay plugin installed, connected and with a webhook URL resolved — steps 1–3 of the Jenkins Plugin tutorial (5 minutes).
• The GitHub Branch Source plugin (Manage Jenkins → Plugins → Available, search for GitHub Branch Source). It listens on the same /github-webhook/ endpoint the Webhook Relay plugin already delivers to, so the Webhook Relay configuration stays exactly the same.
• A repository with a Jenkinsfile on the branches you want built. The screenshots below use webhookrelay/jenkins-multibranch-demo, a minimal public repo with a Jenkinsfile on every branch.

1. Create the Multibranch Pipeline

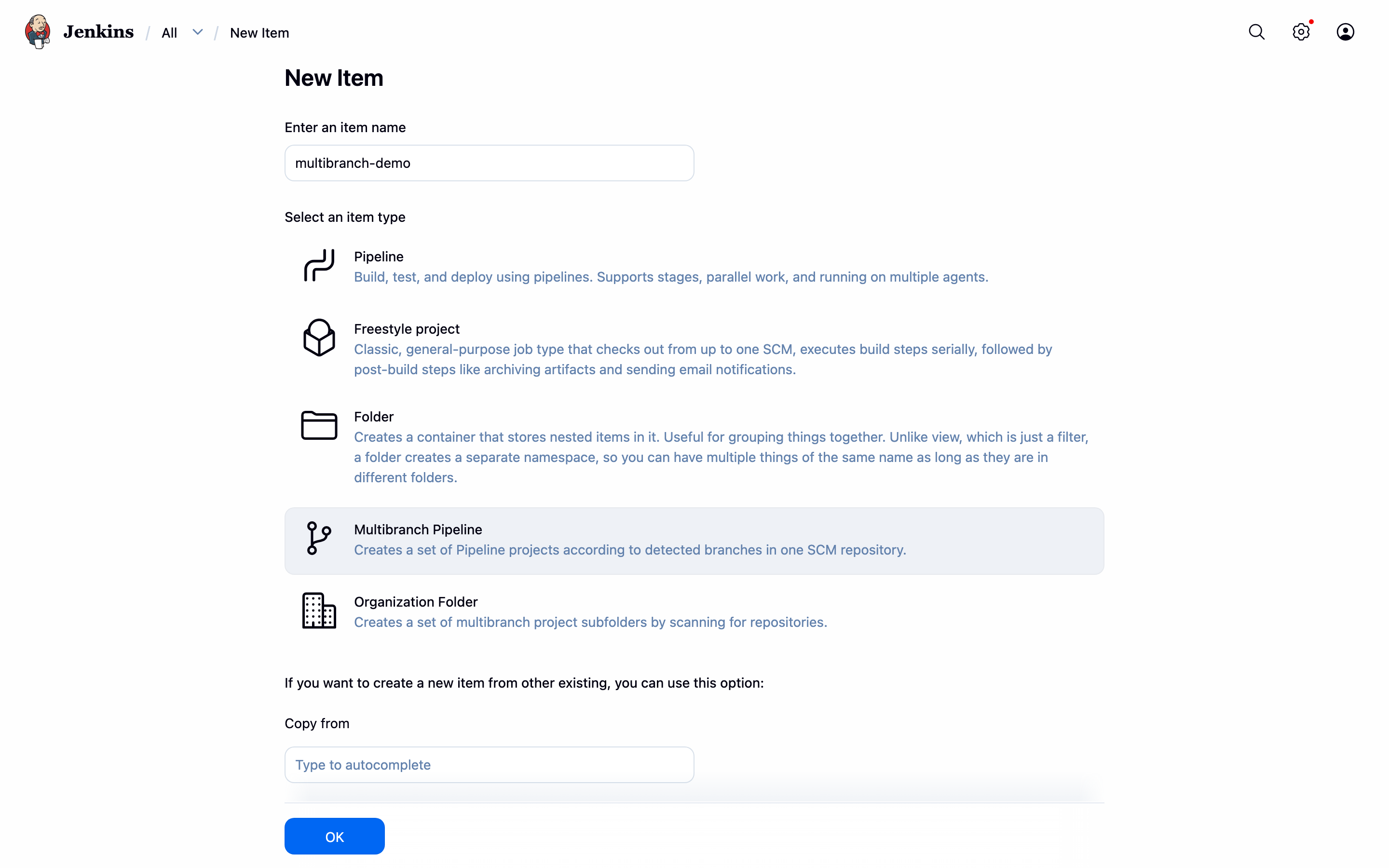

From New Item, enter a name and pick Multibranch Pipeline:

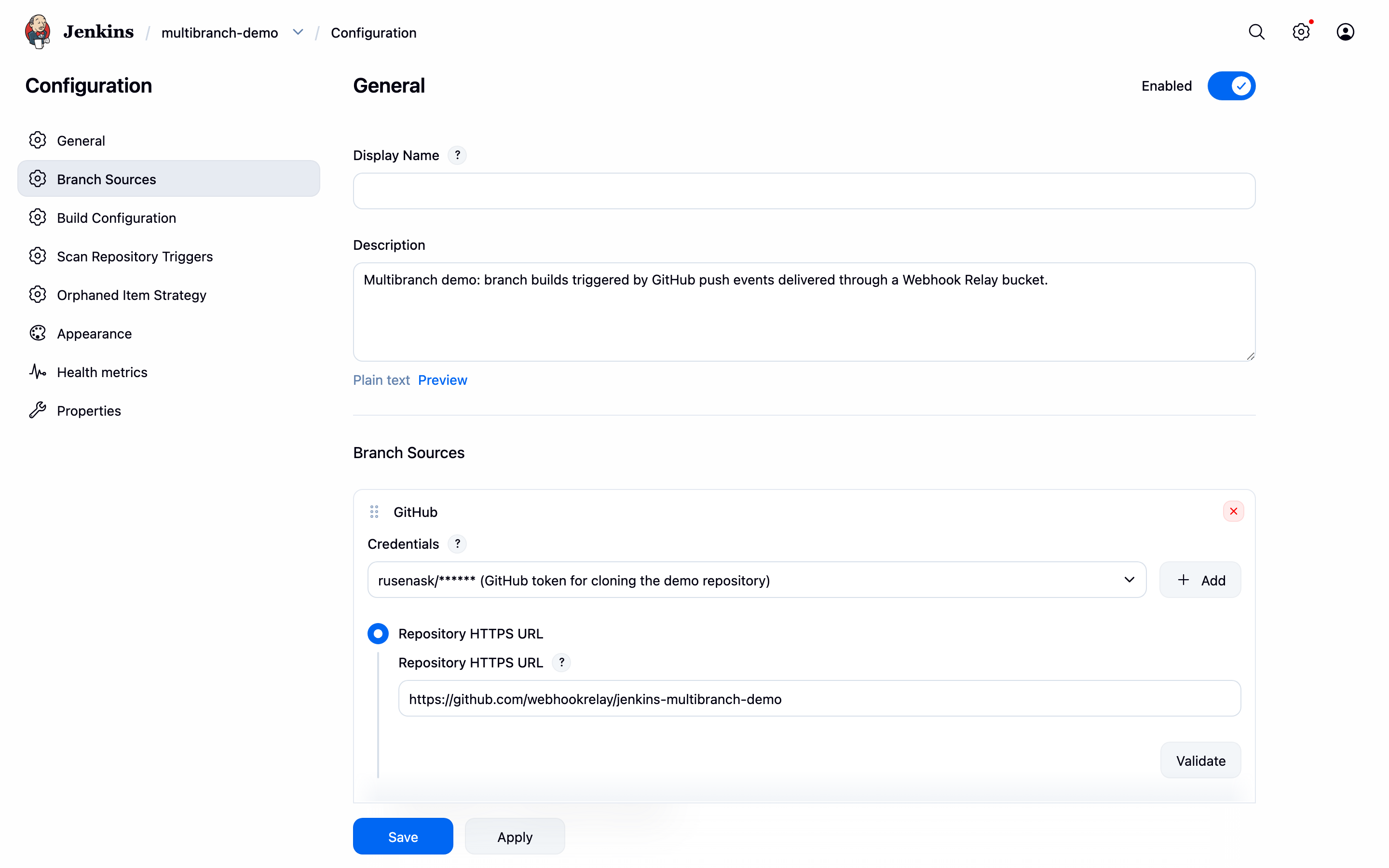

Under Branch Sources, add a GitHub source and set the Repository HTTPS URL to your repository (add a credential if it is private):

Note the Jenkinsfile needs no triggers { githubPush() } block — that trigger is only for regular Pipeline jobs. Save, and Jenkins scans the repository once, creating a job for every branch that has a Jenkinsfile.

2. Add the webhook events

In your repository's Settings → Webhooks, add the Get Webhook URL value from the plugin configuration as the Payload URL (content type application/json). One thing to watch: GitHub's default is to send just the push event. That covers branch builds — but if you also want pull request jobs, choose Let me select individual events and tick Pushes and Pull requests.

3. Push, branch, open PRs

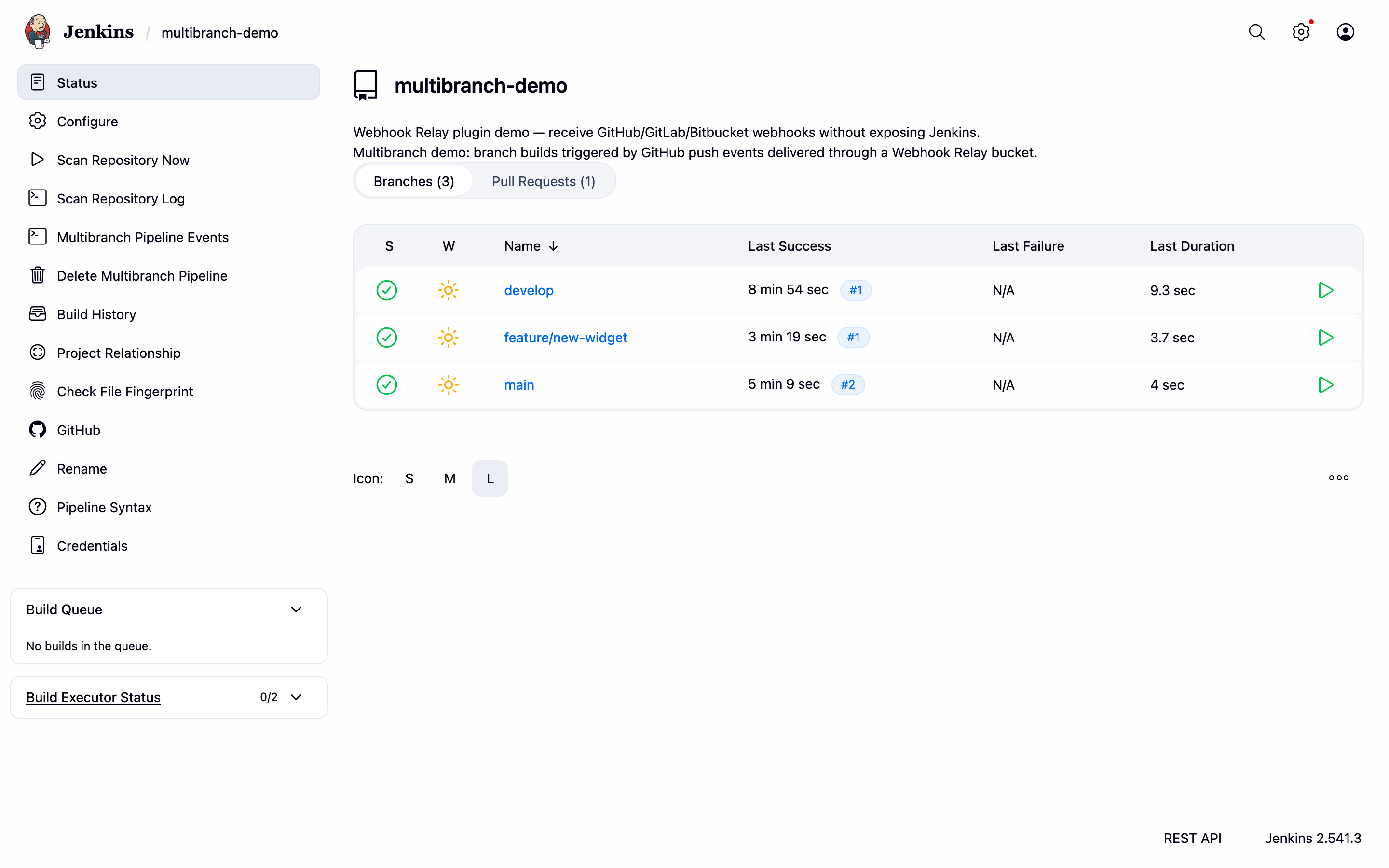

That's it. Push a commit and the matching branch job builds; push a new branch and its job appears and builds on its own:

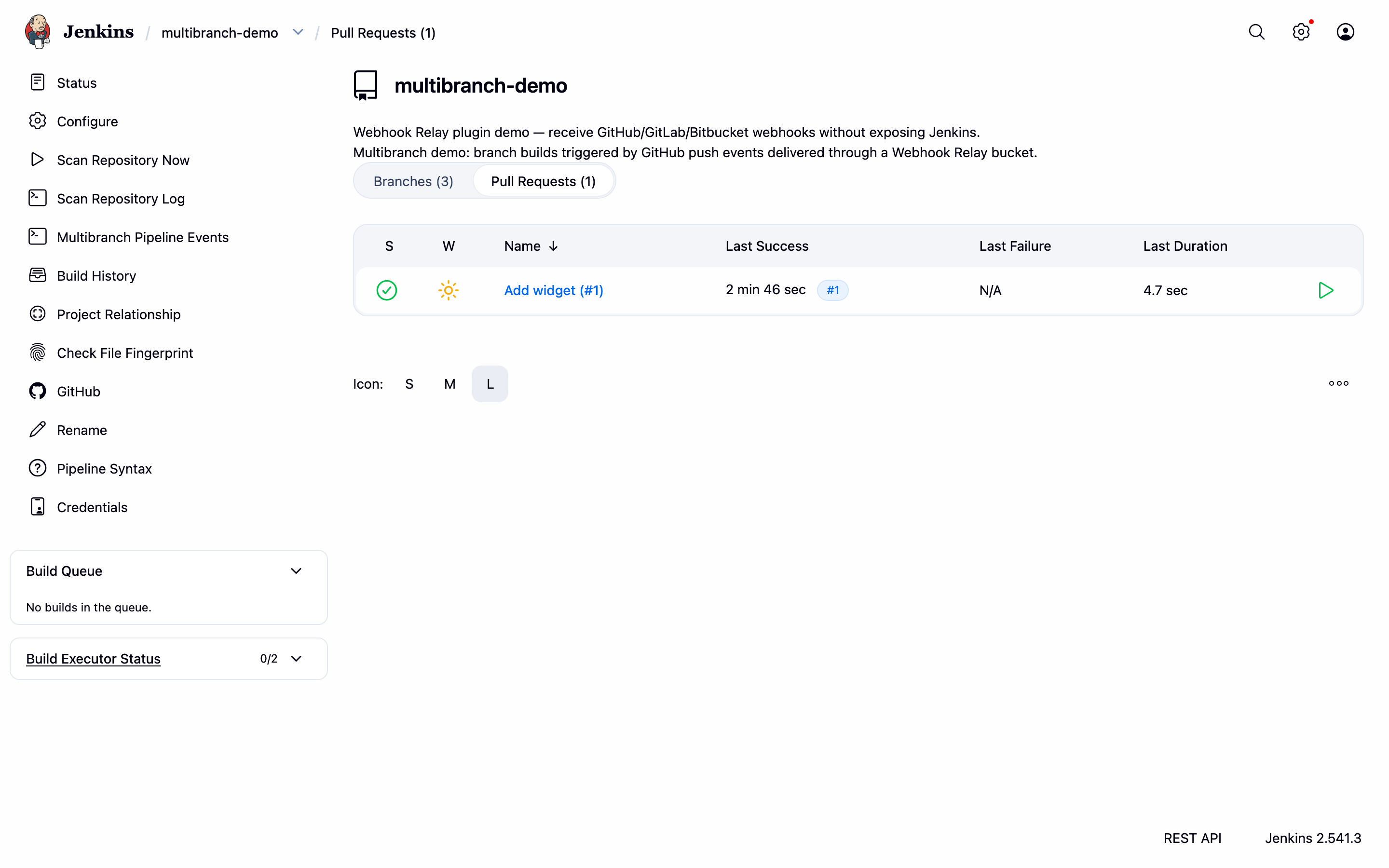

Pull requests get their own tab:

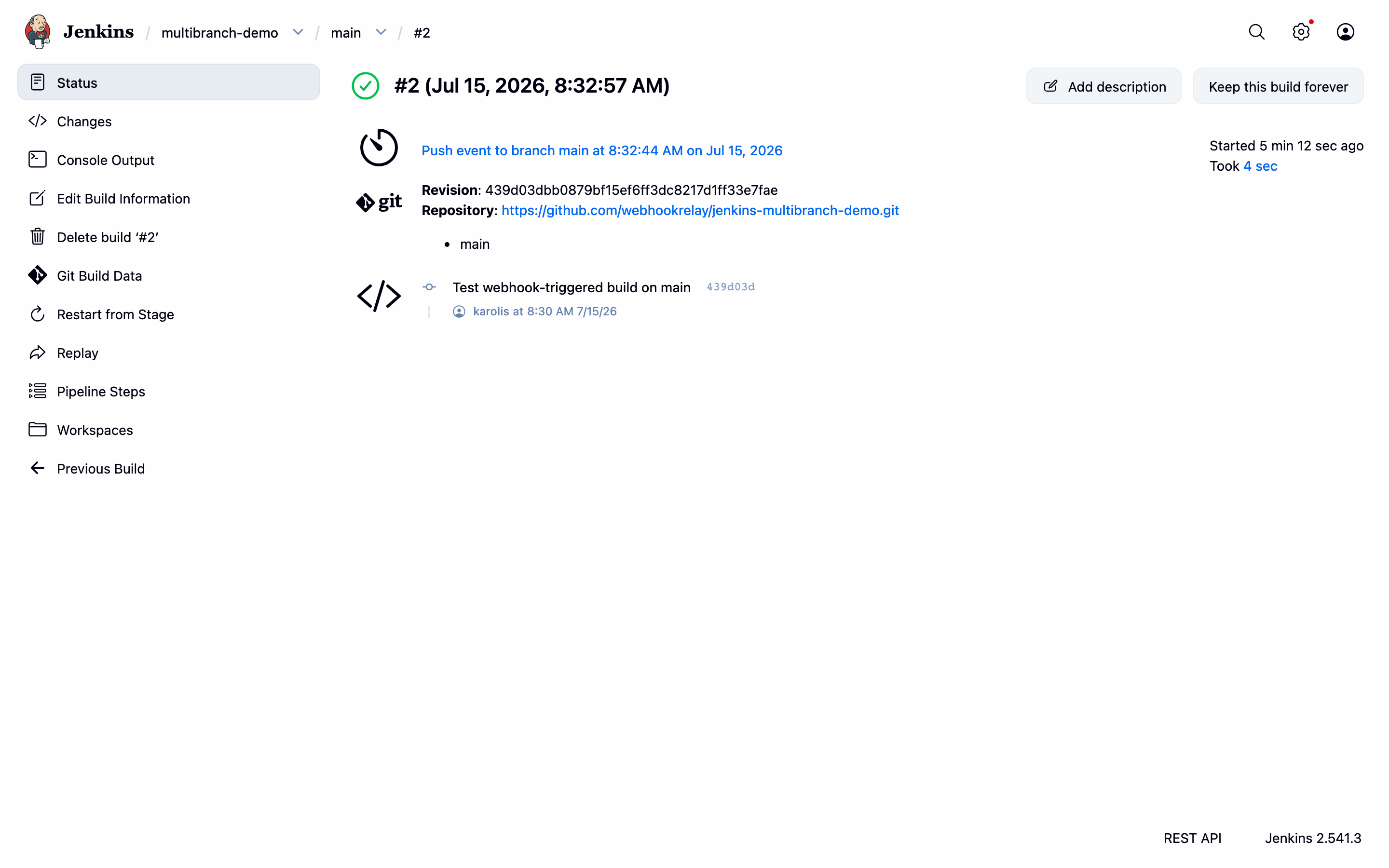

The build page shows the webhook as the cause — Push event to branch main:

Every delivery is also recorded on the bucket's logs page together with the response Jenkins returned, so a webhook that didn't trigger a build is easy to trace.

GitLab and Bitbucket

The same idea applies to the other providers, with one twist: the GitLab Branch Source and Bitbucket Branch Source plugins listen on their own endpoints (/gitlab-webhook/post and /bitbucket-scmsource-hook/notify) rather than on the plugin's preset paths. To deliver there, add an internal output to your bucket with the full destination URL (for example http://localhost:8080/gitlab-webhook/post) — when a bucket has an internal output, the plugin honours its path instead of the preset.

Troubleshooting

Try it with Docker

The plugin repository ships a ready-to-run demo Jenkins (see the Jenkins Plugin tutorial); install the GitHub Branch Source plugin in it and follow the steps above against a fork of jenkins-multibranch-demo.
